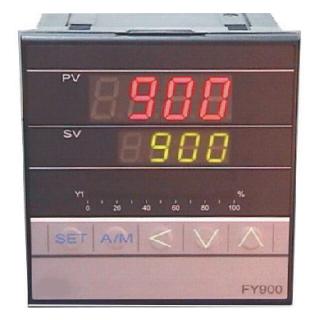

FY_SERIES article

FY-400

FY-700

FY-900

FY-800

FY-600



Features

  • Dual display for easy viewing of process value and setpoint value.
  • PID autotuning.
  • One alarm, standard.  Two additional alarms, optional.
  • Non-volatile memory.  All parameters are retained when the power is shut off.
  • Self diagnosis function.
  • Auto zero.
  • Auto span.
  • Data lock function prevents accidental changes.
  • Universal input; Thermocouple, RTD, DC volt, DC mA.
  • Relay output standard.  SSR drive and current proportioning output available.
  • Second Fuzzy PID control process available.
  • Broken sensor protection.  Automatically switches to manual control with output percentage.
  • Three year warranty.

Specifications

Input (selectable)







Thermocouple B, E, J, K, N, R, S, T, U, W; selectable
RTD PT100 (JIS), PT100(DIN), PT50 (JIS); selectable
DCV -10 to 10 mV, 0-10 mV, 0-20 mV, 0-50 mV, 0-1 V, 0-5 V, 0-10 V; selectable
DC mA 0-20 mA, 4-20 mA; selectable
Outputs (1 std, 1 optional)





Relay Output (standard) SPST 5A/240 VAC
SSR Drive 20 mA / 20 VDC
Current proportioning output 4-20 mA adjustable (maximum load 800 ohm)
Alarms 1 standard, 2 optional 19 modes (selectable)
Control Modes









On/Off Variable sensitivity
P (proportional) 0-200%, adjustable
I (integral) 0-3600 sec, adjustable
D (derivative) 0-900 sec, adjustable
Fuzzy 49 states considered
Electrical



Input voltage 85-265 VAC or 10-50 VDC
Power Consumption 2 VA



approval & free power
All models get CE and UL approval.
Operate on any voltage from AC
85~265V at 50/60Hz.
DC 24V is also available (optional
function)
IP65 Proof
IP66(NEMA4) dust & water proof is available for all models(optional
function)


Heater Break Alarm(HBA)
Heater current flowing through CT can be displayed on controller
If heater current is less than HBA set value. AL1will be activated(optional
function)
MODBUS Communcation
FY series suport both MODBUS RTU and MODBUS ASCII protocal.
Communication between controller and HMIa or other equipment is more conveniet(optional function)

Autotuning(AT)
AT Function can calculate the
optimize PID value for your control system,without trying and error
manually.

Auto/Manual mode
Conveniently switched between auto
/manual output mode by clicking
"A/M" key(except"FY400").

Various Indication Lamps
Real time monitor the status of
output (OUT1/OUT2), AT, alarm
(AL1/AL2/AL3), manual output(MAN) and program(PRO)

Bar-Graph
Output percent displayed on the bar-graph in 10 LEDs resolution
(except"FY400").

High Accuracy
Input with 14bit A/D resolution, 0.2% accuracy of FS. Built in "AutoZero-
AutoSpan" function keep good
accuracy.
RAMP & SOAK
Built in 1 segment of RAMP & SOAK function.
Applicable on "SOFT" start condition.

Self-Diagnosis
Continuous checks the input status, RAM status and A/D status. When error was detected, the
corresponding error code will be
displayed on controller so that user can identify the source of trouble
easily.
Data Lock Function
All parameters are seperated in 3 operation levels. Each parameter can be hidden or locked to prevent
unauthorized changes.

(TC)
INPUT Output
(Relay)
Voltage pulse
(SSR drive)
(RTD)
(mA/V)
SCR/TRIAC Trigger
(mA/V/mV)

Motor Valve Control


Remote SV
PLC
Another controller

Input type :
0~20mA,4~20mA
0~5V,0~10V,2~10V,0~1V

Transmission
Recorder
Display
Signal type :PV,SV
Output type:
0~20mA,4~20mA
0~5V,0~10V,2~10V,0~1V

Communication-RS485

  (RS485 Communication)

  Up to 31 controllers
can be connected
Max length 1200M
Communication-TTL
Up to 10 controllers can be connected Max length 1M
The SV vaiue of siave controllers will be remoted by master controller, and
reached to max value at the same time

Ramp/Soak Program
There are 2 patterns by 8 segments can be used in ramp/soak program
There are 2 patterns can be linked togetter as 16 segments i ramp/soak program.

Heationg and Cooling Control

Motor Valve Control
SCR/TRIAC Trigger

  ■ Control Method ■ Fuzzy
  ■ Autotuning(AT) ■ Limit Setting

  ■ Easy Mounting ■ Saving Space

  ■ Alarm Types ■ Delay Time
■ Hold Function

Use this function can avoid alarm acts
at shart-up.The alarm action is
suppressed at start-up until PV enters
the non-alarm range.
