WLKC _series article

WLKC Series Digital PID Controller

Application:Control temperature,humidity,

This series controllers are microprocessor based controllers. Which have been Designed with high accuracy input, various

output  selection, useful options and good reliability at a competitive price.

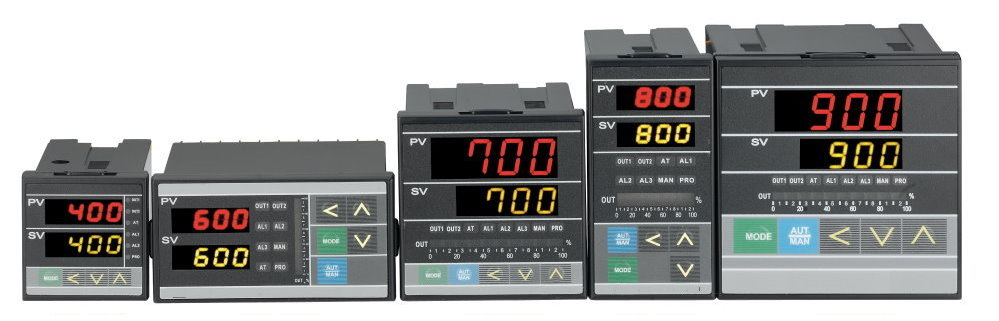

     WLKC400          WLKC600           WLKC700         WLKC800         WLKC900



High Accuracy:

Input with 14bit A/D resolution, 0.2% accuracy of FS. Built in "Auto Zero-Auto Span" function keep good accuracy.

MODBUS Communcation:
series suport both MODBUS RTU and MODBUS ASCII protocal. Communication between controller and HMI or
other equipment is more conveniet (optional function)

Autotuning(AT):
AT Function can calculate the optimize PID value for your control system, without trying and error manually.

Various Indication Lamps:
Real time monitor the status of output (OUT1/OUT2), AT, alarm (AL1/AL2/AL3), manual output(MAN) and program(PRO)

Bar-Graph:
Output percent displayed on the bar-graph in 10 LEDs resolution  (except"WLKC400").

Data Lock Function:
All parameters are seperated in 3 operation levels. Each parameter can be hidden or locked to prevent
unauthorized changes.


PV Input

Type of Input

TC (K,J,R,S,B,E,N,T,W,PLII,U,L)

RTD (PT100,JPT100,JPT50)

Linear(10~0m,0~10m,0~20m,10~50m,0~1%,0~5%,0-10%,0-20 mA,)

Input sampling Time

250ms

Input Resolution

16bit(Each)

Indication

PV/SV Indication

4-digit,7 segment display

Constant Value Storage System

Non-volatile memory(E2PROM)

Indication Accuracy

0.5%FS

Control Mode

Proportional Band(P)

0~200%(On/off action at P=3.0)

Integral Time(I)

0~3600 sec(PD action at I=240)

Derivative Time(D)

0~900 sec(PI action at D=60)

Cycle Time

0~150 sec(4~20mA→0,SSR→1,Relay→10)

Dead Band Time

0~1000 sec(Dead time compensation)

Output

Relay Output Relay

Contact,SPDT,3A/240VAC

Voltage Output

Voltage Pulse,20VDC/20Ma

Linear Output

4~20Ma,0~5V,0~10V,1-5V,2-10V

Alarm

Channel

Channels (Optional)

Mode

17 alarm Modes Available

Timer

Flicker Alarm

Continued Alarm

On Delay Timer Alarm

General

Specifications

Rated Power Supply Voltage & Frequency

A85~265V,50/60Hz

Power Consumption

4VA

Ambient Temperature

-25℃~65℃

Ambient Humidity

50-85%RH (Non condensing)

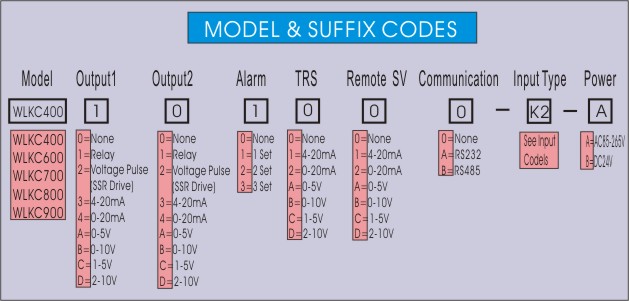

MODEL

A

B

C

D

E F G H

WLKC-400

44.5+0.5

44.5+0.5

65

70

48 48 12.5 81

WLKC-600

90.5+0.5

44.5+0.5

110

70

48 96 12.5 81

WLKC-700

68.5+0.5

68.5+0.5

90

94

72 72 12.5 81

WLKC-800

44.5+0.5

90.5+0.5

65

116

96 48 12.5 81

WLKC-900

90.5+0.5

90.5+0.5

110

116

96 96 12.5 81
